The Schertler DAVID Amplifier | ||
---|---|---|
100 watts of clear quality sound

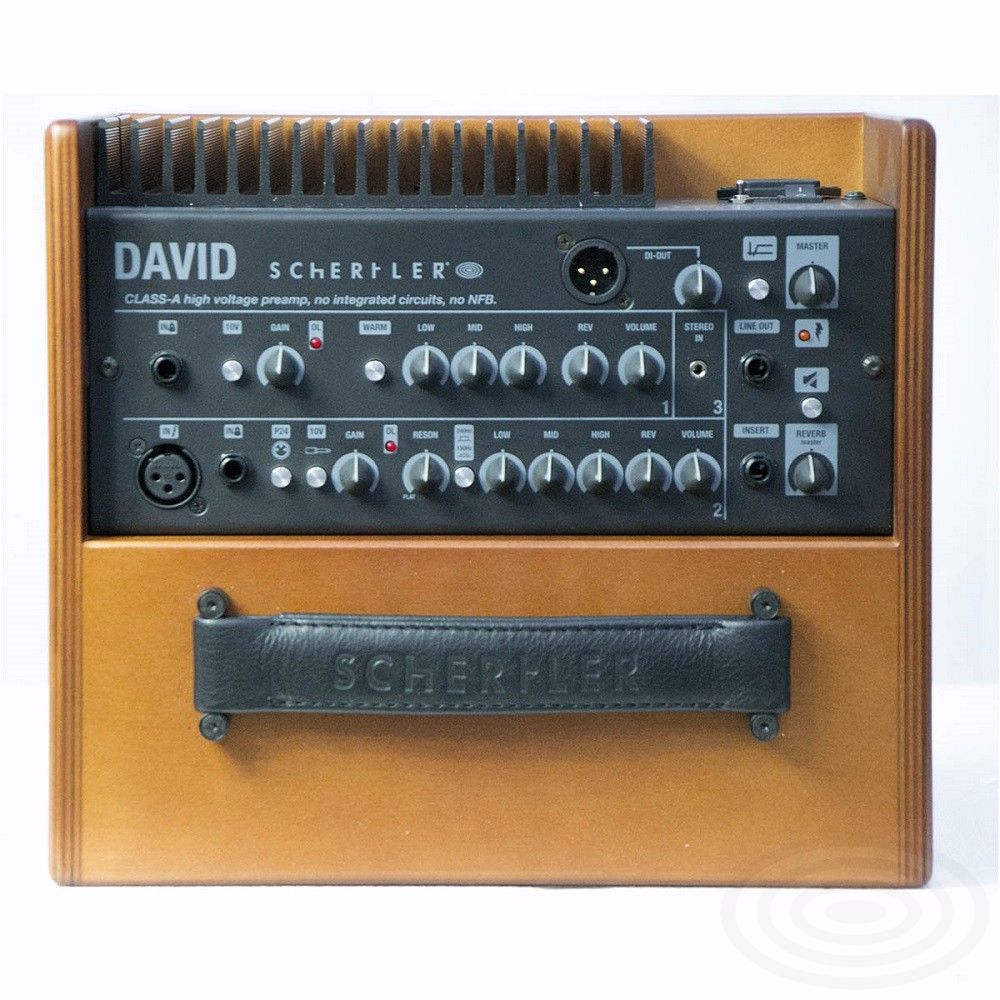

The DAVID becomes the second member of Schertler's "next generation" acoustic amplifier series. This newly-designed 3-channel amp, combines a wealth of new features and updated technology with a new "look" DAVID's inputs will accommodate a microphone, an instrument and a stereo device such as a computer, MP3 player or CD. The instrument input and the Jack input on the microphone channel both feature a Bootstrap technology that enables the input to automatically adapt to any impedance. Some of the new DAVID amplifier's new features include: three channels, a range of controls including gain, switchable resonance (notch) filter, adjustable DI Out in the master section, mute switch and overload LED for each channel. A new digital reverb replaces the spring one found in the original David models. DAVID is also equipped with a high voltage CLASS-A preamp that has no integrated circuits and No Negative Feedback (NFB). Amplifiers are available in a choice of wood or anthracite finishes. The more delicate wood finish is perfect for studio or home use, blending with a range of room interiors. The anthracite finish is designed for performance and touring applications, where a more robust exterior finish is required. |
||
Weight............................... 10 kg (22.04lb) Dimensions........................ 29.5x25.5x35.5cm Frequency Response......... 50 Hz to 30 kHz (+/-3dB) Speakers............................ 1” dome tweeter, 6” woofer Construction .......................Plywood Channels ............................3 independent channels Inputs .................................Channel 1 Jack 6.3mm unbalanced, ............................................Channel 2 XLR balanced, ............................................Channel 3 Jack 3.5mm stereo Outputs ...............................DI, LINE Phantom Power ..................24-33V and 10V on Channel 2, ............................................10V on Channel 1 Effect ..................................Digital reverb Preamp ...............................Class-A Power .................................100W Bi-amplified | |
