The Schertler Bass Subwoofer


$688.00


Schertler’s 200W active BASS subwoofer can be effectively teamed with a UNICO or DAVID amplifier to enhance the performance of acoustic instruments that produce strong low frequencies, such as double bass, acoustic bass guitar or ‘cello.

In order to let BASS exploit the low frequency range to maximum effect, we recommend using the low cut feature on UNICO and DAVID.

Because of its active stereophonic separation, BASS can also be combined with two SIDE units to form a highly effective compact PA system.

The subwoofer has robustly constructed plywood housing with side handles for convenient transportation. Its bipolar 200W and traditional power supply ensure an extremely controlled, accurate and powerful bass reproduction

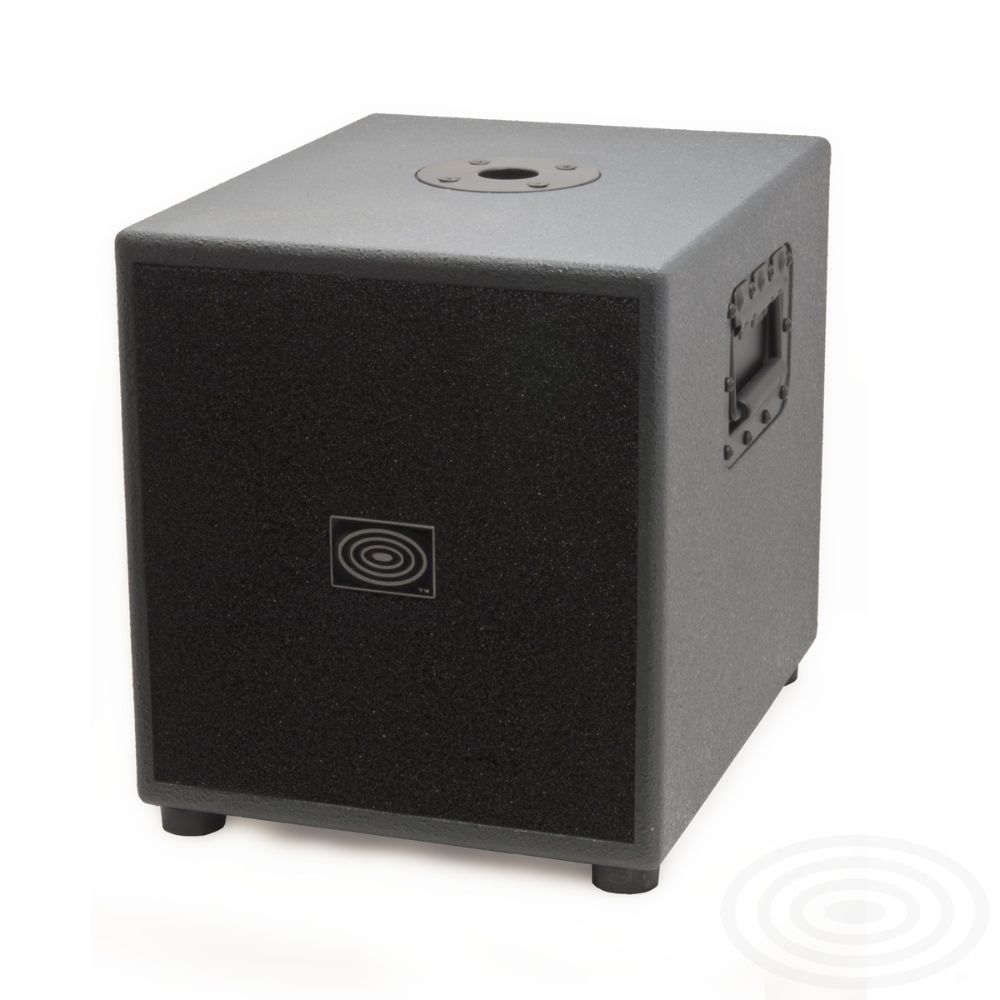

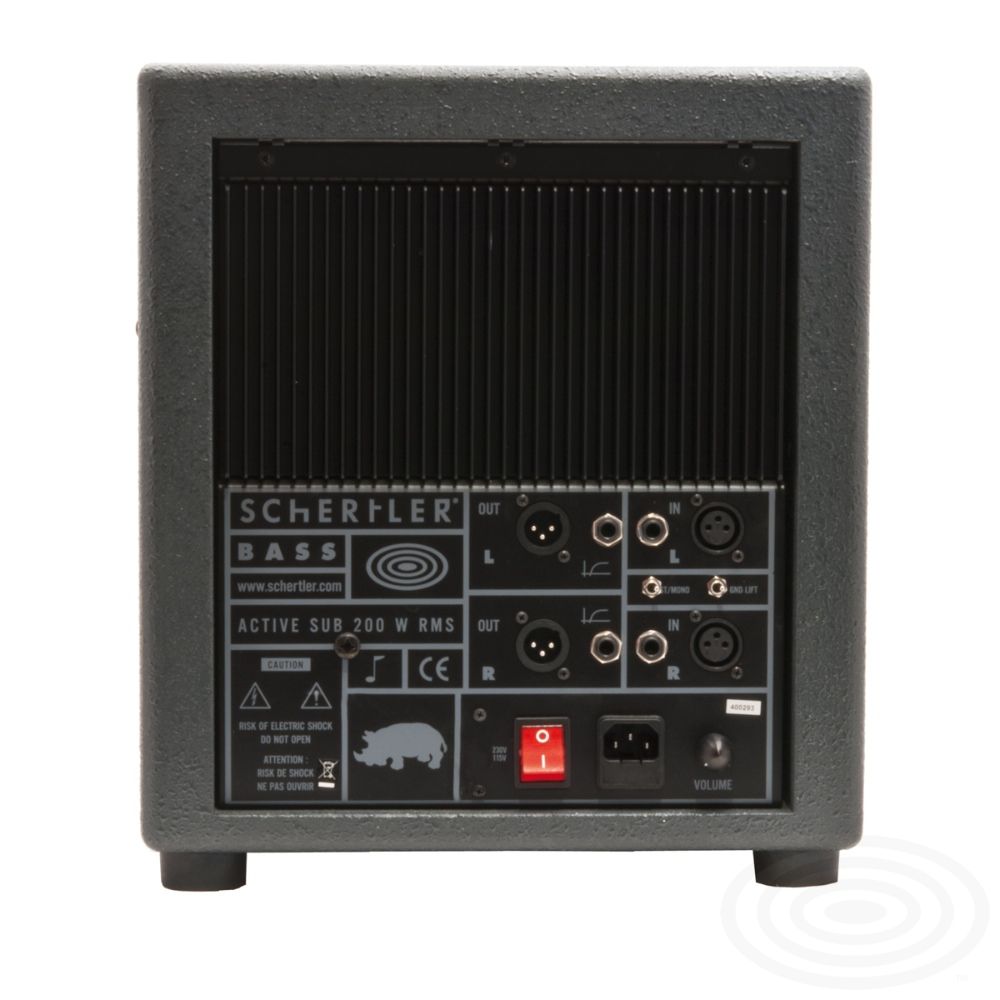

BASS photo BASS control panel
Weight............................... 17.4 Kg (38.35 lb)
Dimensions........................ 32 x 40 x 37 cm
Frequency Response......... 25 Hz to 200 Hz (+/-3dB)
Speakers............................ 10" woofer bass refelx
Construction .......................Plywood
Controls...............................Volume, Ground Lift, mono or stereo
Inputs..................................Stereo/Mono inputs
Outputs ..............................2x combo parallel and 2x crossover out
Max SPL.............................117 dB
Power..................................200 W
