The Schertler Bass Fidelity B15
500 watts of clear quality sound


$2,388.00


This top-of-the-range combo has a variety of uses for the bass guitarist, as well as delivering an amazing sound! Equipped with a 15” woofer, custom horn with 1” compression driver, transistor preamp and Class D amplifier, the B15 packs out a useful 500W RMS of bi-amplified power, making it ideal for larger venues and loud environments such as rock concerts. The amplifier has a wide frequency range, resulting in a great bottom end and excellent overall dynamics. It is suitable for use with a range of instruments including 5- and 6-string basses.

B15 is provided with its own cover bag.

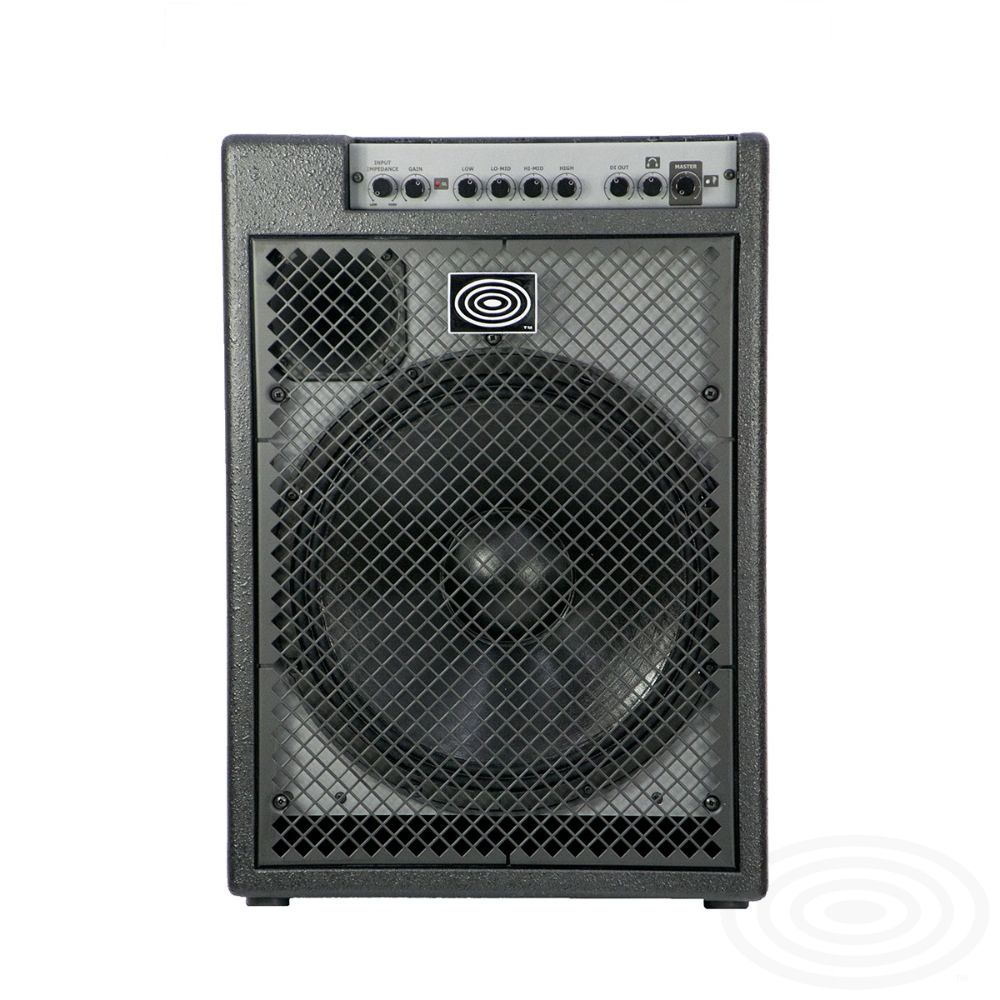

BF15 photo BF15 control panel
Weight................................ 24 kg (52.91 lbs)
Dimensions........................ 63 x 44.5 x 43.5 cm
Frequency Response......... 40 Hz to 16 kHz (+/-3dB)
Speakers............................ Custom Horn 1” compression driver, 15” woofer
Construction .......................2-way Bass Reflex Plywood
Channels ............................1 channel
Sensitivity ...........................100 dB (1W/m)
Outputs:...............................DI, XLR pre/post EQ and Headphones
Stand-By Switch...................yes
Impedance...........................22 kohm to 2Mohm @ 1kHz
Preamp ...............................Transistor
Power ..................................Digital class D Amplifier
Power handling ...................500W
Crossover ............................3 KHz 18dB/oct
Tone Control ........................4 band +/- 15 dB
